Block Diagram of a Computer: Components and Data Flow

How to Read a Computer Block Diagram

A computer looks like a single machine, but inside it has many parts working together. To understand how a computer works, students learn the Block Diagram of Computer. A block diagram is a simple box diagram that shows how input, processing, memory and output units work together. It helps students clearly understand the working of a computer system and makes learning easy for exams.

Introduction

The Block Diagram of Computer is a simple diagram made using boxes. It shows how data enters the computer, how it is processed and how results are produced.

Main Units of a Computer

A computer has four main units:

• Input Unit

• Central Processing Unit (CPU)

• Memory Unit

• Output Unit

All units work together like a team.

CPU and Its Parts

The CPU is the brain of the computer. It has three parts:

• Control Unit – controls all operations

• ALU – performs calculations and logic

• Registers – small memory for quick work

Input, Output and Memory Units

• Input Unit – takes data from keyboard, mouse, scanner

• Output Unit – shows result using monitor, printer, speakers

• Memory Unit – stores data temporarily and permanently

Primary memory includes RAM and ROM. Secondary memory includes hard disk, SSD and pen drive.

Data Flow in a Computer

1. Data enters through input devices

2. CPU processes the data

3. Memory stores information

4. Output shows the result

Why Block Diagram Is Important

• Easy to understand computer basics

• Simple to draw in exams

• Helps learn advanced topics later

• Builds strong foundation

Conclusion

The Block Diagram of Computer is the easiest way for students to understand how a computer system works. It clearly explains the role of input, CPU, memory and output units. Learning this concept helps students score better in exams and understand computers confidently.

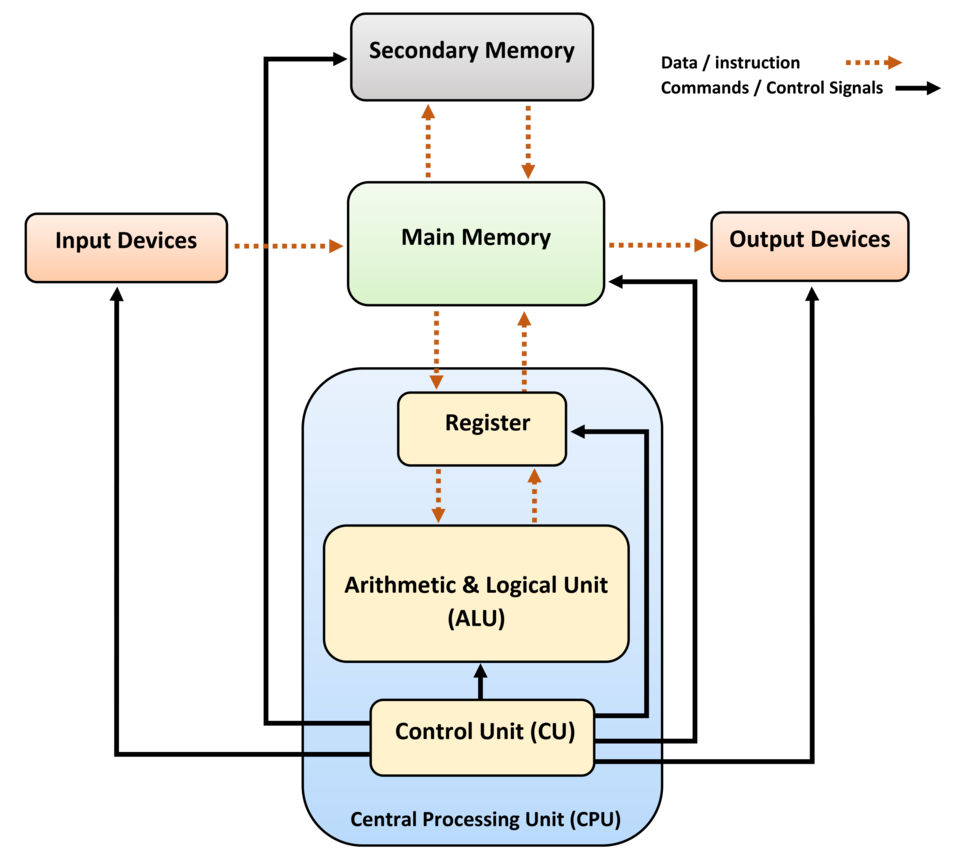

Simple Block Diagram of a Computer System

[ INPUT UNIT ] ----> [ CPU: CU + ALU + REGISTERS ] ----> [ OUTPUT UNIT ]
                                  ^      |
                                  |      v
                              [ MEMORY UNIT ]

Example: What Happens When You Add 8 and 5?

1. Input: You use a keyboard or touchscreen to enter 8, the addition instruction and 5.
2. Memory: The running application and the values needed for the calculation are held in working memory.
3. Processing: The control unit coordinates the instructions. The ALU performs the addition, with registers holding working values inside the CPU.
4. Output: The application displays 13 on the screen. Saving the result to a file is a separate storage operation.

How to Draw the Diagram in Your Notebook

1. Draw an input box on the left and an output box on the right.
2. Draw the CPU in the centre. Label its control unit, ALU and registers.
3. Place the memory unit below the CPU and show that data and instructions can move between them.
4. Add arrows from input to processing and from processing to output. Explain the direction of each arrow.

Some textbooks draw the memory unit beside the CPU or show storage separately. Follow your textbook’s convention and label the function of each block. The CPU and the computer cabinet are different: the cabinet contains several components.

Practise With Everyday Examples

Choose a classroom task such as typing a sentence or playing a recorded sound. Name the input device, describe the processing, identify the information being stored and explain the output. A touchscreen can provide both input and output, so a device may have more than one role.
